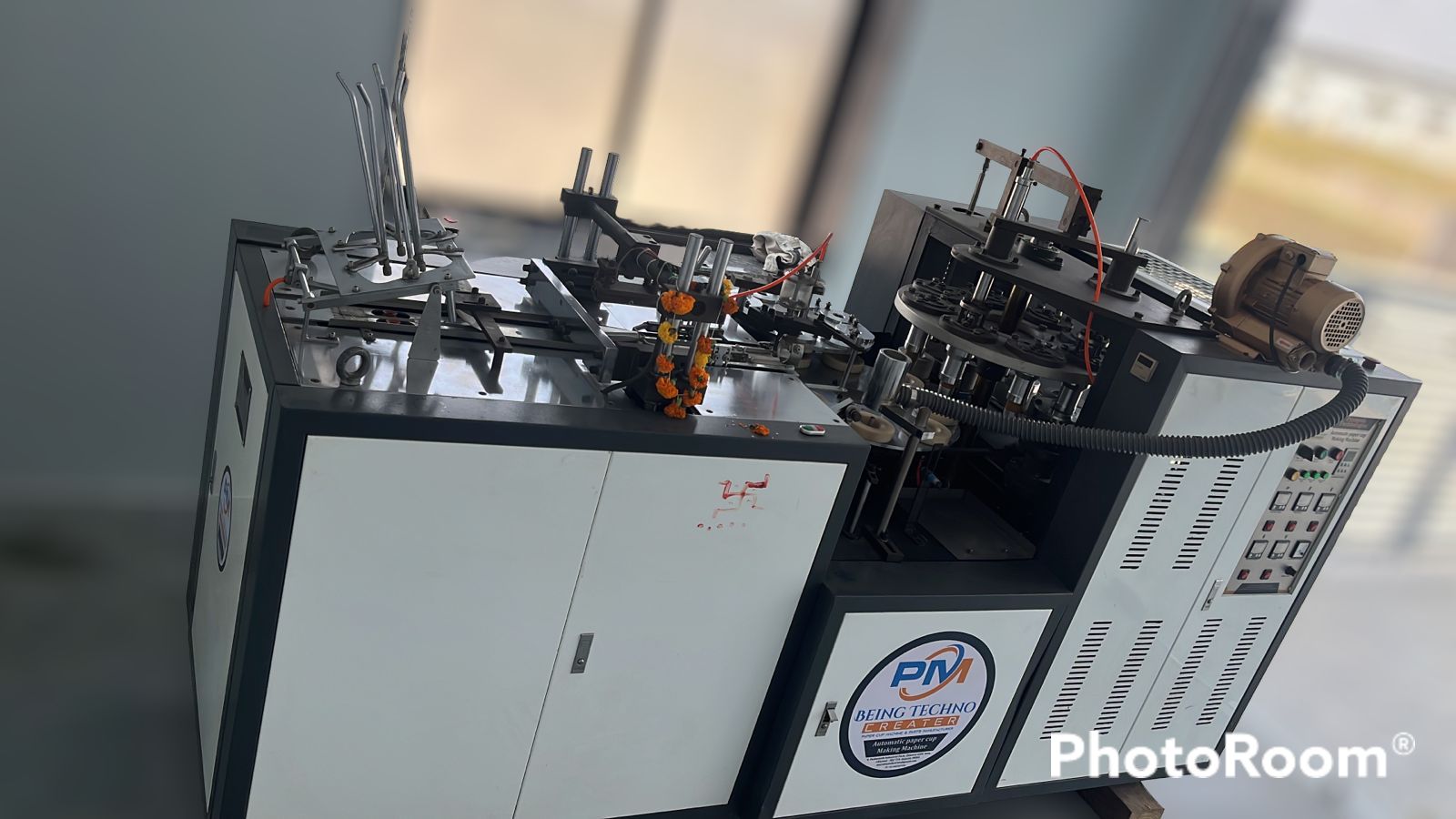

• Paper Cup Making Machine : PM-C600

    PEPMECH introduce to OPEN CAM technology in paper cup making machine industries. This model manufactured using latest technology and high tech equipment which are reliable as well as durable. Our service engineers worked very hard to make this iconic model.





    After-sales Service: Engineers Available to Service Machinery Overseas
    Warranty: 1 Year
    Type: Plastic Extruder
    Plastic Processed: PP PE PVC Pet ABS
    Product Type: Granulating Extruder
    Feeding Mode: Multiple Feed

    Product Description

    This model of Paper Cup Machine is equipped with the single turn plate and open cam technology for faster production and greater longevity. It is highly recommended machine of our Paper Cup Machine range for all kind of buyers.



    • 🟢 No need for an air compressor
    • 🟢 Compact design and easier functioning
    • 🟢 Lesser power consumption
    • 🟢 Increased stability and throughput
    • 🟢 Heavy structure and lesser vibration
    .

    Feature

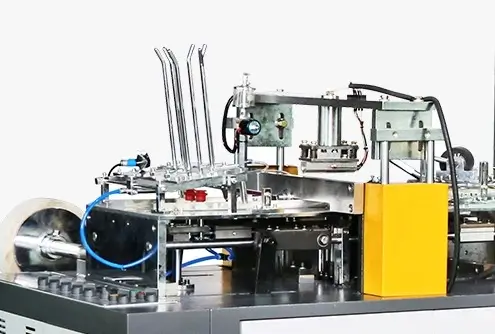

    Paper Fans (blanks) are pushed forward using two layer system which helps in smooth and steady movement of paper fans (blanks) towards mother mould.

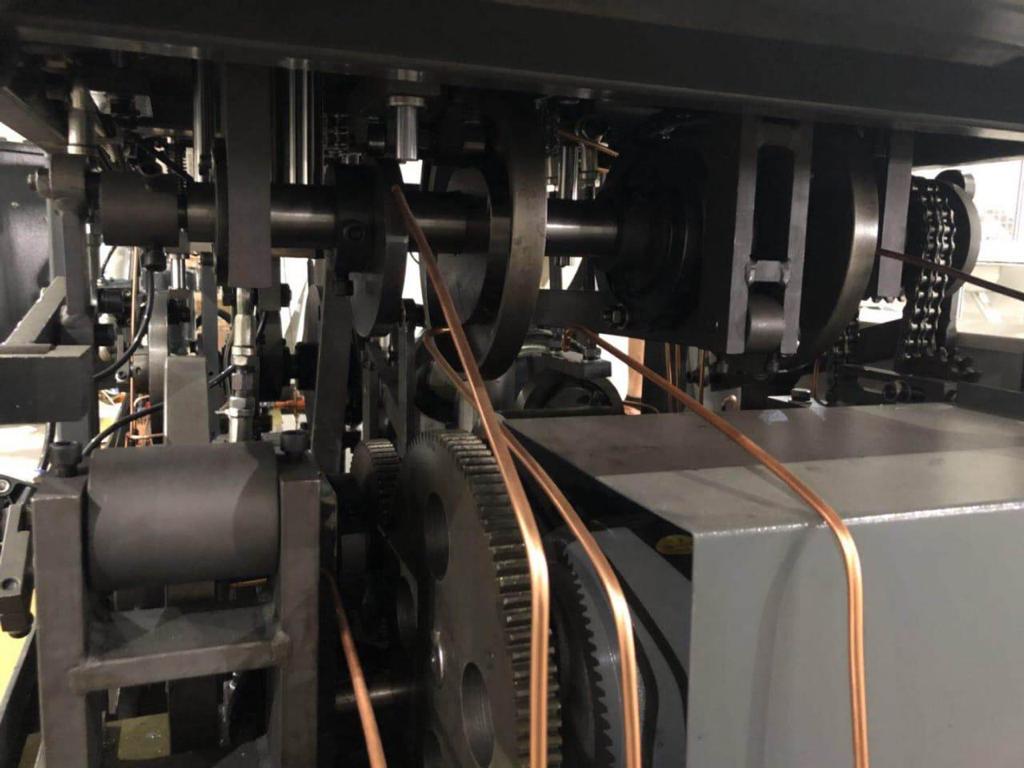

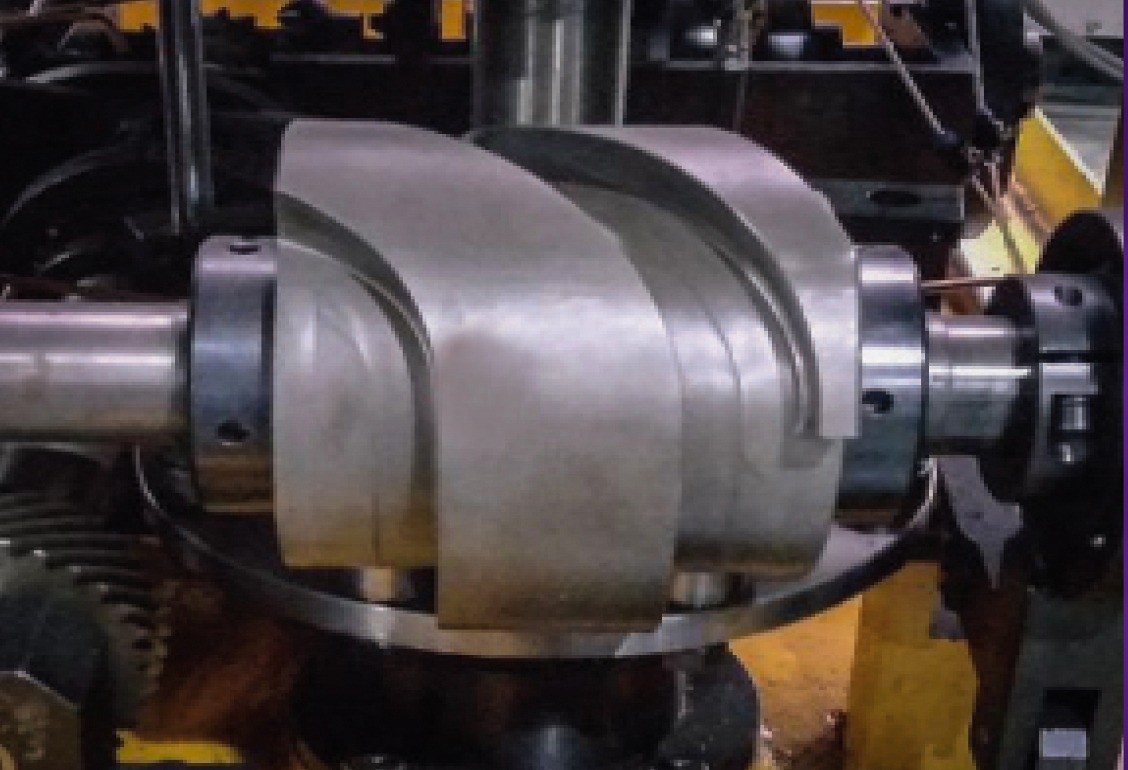

    Our machines use open cam technology instead of gear box drive system which causes low maintenance. Open cam follows bearing movement that is run by auto lubrication which reduces friction. And this helps in smooth and steady operation.
    Our machines use open cam technology instead of gear box drive system which causes low maintenance. Open cam follows bearing movement that is run by auto lubrication which reduces friction. And this helps in smooth and steady operation.

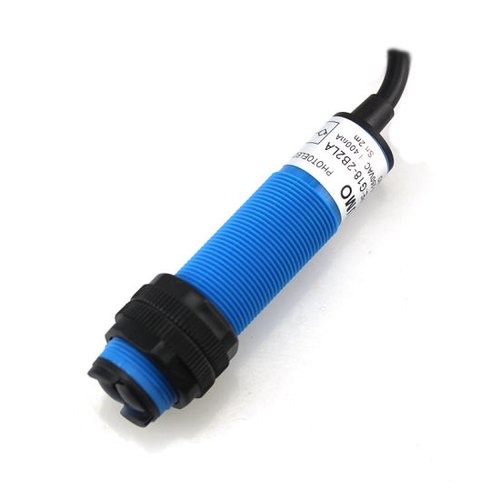

    Sensors have been placed in our machines at various stages including Paper Fan feeding, Cup Sealing, Bottom punching, Cup counting. Whenever any defective piece enters in the machine, sensor alarm beeps and machine stops working as well.

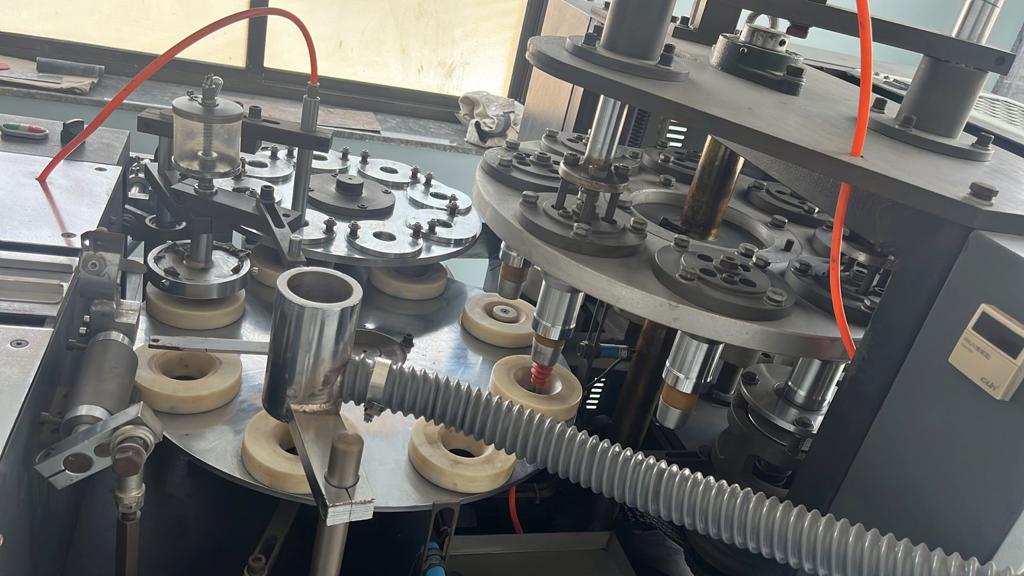

    All our models are equipped with Direct Bottom System instead of the indirect one. It reduces total operational time and also eliminates excessive movement of cup cone during formation.
    All our models are equipped with Direct Bottom System instead of the indirect one. It reduces total operational time and also eliminates excessive movement of cup cone during formation.
    .

    Technical Parameters



    PARTICULARS

    SPECIFICATION

    MODEL

    PM-C600

    ORIGIN

    China & India

    PAPER CUP SIZE RANGE

    30-350 ml (1.5 Oz - 12 Oz)

    PAPER CUP HEIGHT

    30-115 mm

    PRODUCTION SPEED

    55 to 60 Pcs/Min

    ELECTRICITY CONSUMPTION

    3.5 Kw (5 HP)

    POWER SUPPLY

    380V 3 Phases

    WEIGHT

    1800 kg

    MACHINE DIMENSIONS

    2300*1200*1700 mm

    RAW MATERIAL

    Single/Double PE Coated Paper

    PAPER SPECIFICATION

    130-350 gsm

    APPLICATIONS

    Tea Cup, Coffee Cup, Water Cup, Water Glass, Ice-Cream Cup, Soup Cup & Yoghurt Cup etc.

    AFTER SALES SERVICE

    Online Technology Support

    In feature the  company  rules  the  right  to  change  the  specification  /  design  for  the  better functioning of the machine.
